Barrel Heater Installation and Maintenance for Injection Molding Machines

Proper installation and regular maintenance of barrel heaters are essential for consistent heating performance and energy efficiency in injection molding. Below are the key points to follow.

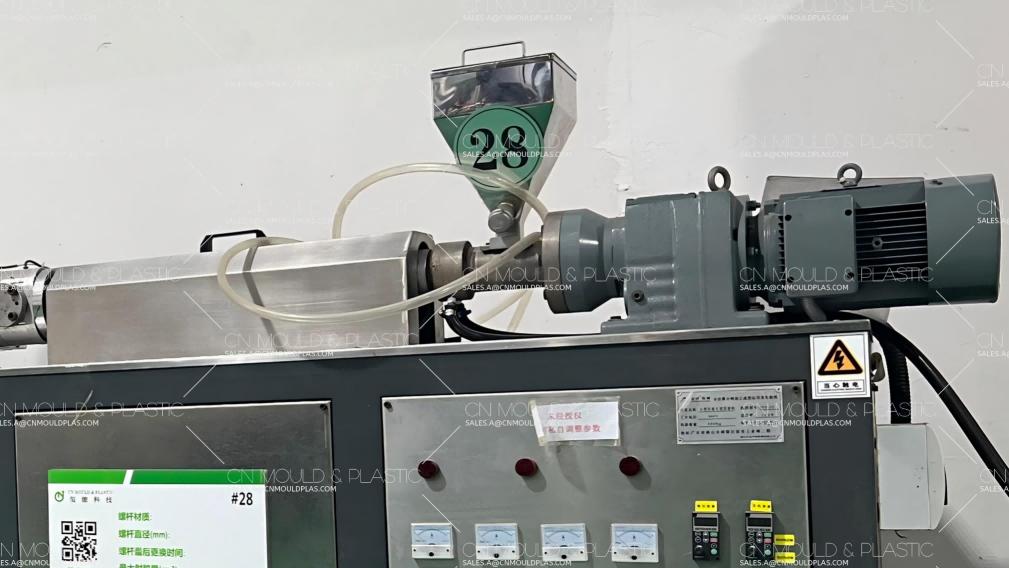

1. Installation of Barrel Heaters

① Prepare the heater and barrel surface

Use sandcloth to clean the inner surface of the heater, removing any rust or dirt. Check the roundness of the heater. If it is uneven or out‑of‑round, correct it so that the heater fits snugly against the barrel surface.

② Mount the heater and secure connections

Connect the heater wires to the corresponding terminals. Install the heater bands in sequence and tighten the bolts until the heaters are fully wrapped around the barrel. Apply heat‑resistant grease to the bolts and housing — but only a thin layer, as excessive grease may drip.

③ Install the thermocouple

Blow out the thermocouple mounting hole completely. Screw the thermocouple into the hole, ensuring its tip makes direct contact with the bottom of the barrel hole.

④ Support the screw barrel

After fixing the heaters in place, use support bolts to hold the screw barrel. This prevents additional load from being placed on the heaters.

2. Maintenance of Barrel Heaters

① Check for looseness after heating

Band heaters can expand during operation, which may cause them to loosen and reduce heating efficiency. After the barrel reaches operating temperature, retighten the heater housing bolts.

② Regularly measure current

Periodically check the current draw of the heaters. A clamp meter (also known as a clip‑on ammeter) is a convenient tool for this purpose.

③ Inspect wiring, fasteners, and thermocouples

First, turn off the power. Inspect the heater housing, wiring, screws, and terminals for any plastic residue. Make sure wires are not pinched. Then turn the power back on and check whether the sensing tip of the thermocouple is making good contact.

④ Use matching replacement parts

Heaters and thermocouples are designed to work together. When replacing either component, always use the same specifications as the original.
